Introduction

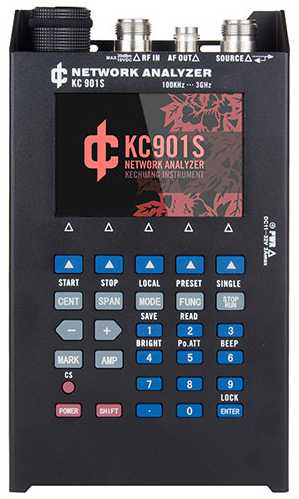

• KC901S is a “RF multimeter”. It offers the capabilities of single port vector network analysis and dual port scalar network analysis, also with spectrum, field strength and signal generator functions. It is a powerful and useful handheld instrument for RF engineer both in lab and on the field.





ONE YEAR FULL INDIAN WARRANTEE AND LIFE LONG INDIAN SERVICE

100Khz to 3Ghz  Vector Network Analyzer Rs1,25,000/-

Features


• Test frequencies up to 3GHz with 1Hz resolution and stability better than 1ppm.
• Providing vector measurement on S11 with 0.01 phase resolution and 0.01db amplitude resolution.
• With vector measurement capability of S11, it shows the smith chart, RL(Return loss), characters of phase position, and frequency.
• In S21 scalar measurement, it has the function of single frequency S21 within range of 100dB.*
• With its non-volatile calibration data built-in, on site calibration is not necessary if performing a qualitative measurement. While performing rigorous test, you may use the SOL to enhance the calibration.
• A handy field strengthen meter with a high dynamic range.
• Built in DDS, audio signal source function.
• Data can be saved in the Memory Card or be transferred into PC via USB.
• 3.5 inch color-display -Excellent response speed with accurate key feeling, less than 3s ready to use.
• Functions are stable and reliable with the excellent hardware/software design.
* in accordance with Technical parameters

Main Functions


• Transmission measurement (filter adjustment, amplifier measurement and directivity measurement of antennas).
• Reflection measurement (adjusting impedance matching network and examining quality of antenna feed system).
• Measurement of Low frequency signal source and radio frequency signal source.
• Spectrum display and field strength detection***(inspecting radio station emission performances and searching for interference sources).

Recommended Applications


• KC901S is designed for adjusting RF circuits, such as filters, amplifiers, splitter, combiner, for testing input and output impedance, evaluating the quality of antenna feed system, and for detecting signal amplitudes of equipment at all levels. In some bands, field measurement, and detection of interference are allowed.
• When combined with community exchange, KC901S is a good tool to learn radio frequency knowledge. In the area of expertise, it can be applied in professional Communication Engineering, antenna manufacture and daily maintenance of broadcast and TV radiating stations, promoting working efficiency, ease carrying burden as well as improve quality of works.

KC901S technical parameters (beta version, may different with formal version)

Frequency range:

Transmission test 100kHz… 3GHz

Reflex testing 300kHz… 3GHz

Audio signal 3Hz… 300MHz

Output level (typical):

+3dBm or 2mW (1MHz – 3GHz)

The built-in RF variable attenuator: 0 – 30dB

0.05-1.5V (audio 3Hz-1MHz)

Input sensitivity:

Better than -107dBm or 1μV (100KHz – 2GHz)

Better than -87dBm or 10μV (2-2.8GHz)

Max input level:

All RF port DC10V, +20dBm

S21 test range (typical):

100dB(1MHz—1GHz,in 100KHz about 60dB)
70dB(1——2GHz)
60dB(2——3GHz)

Resolution:

1Hz Frequency, 0.01dB Level, 0.01°phase, pressure 0.1hPa,0.1m altitude.

The level of uncertainty (typical values, @25°C):

+ 1.5dB (spectrum test, REF=20dBm) ,+ 3dB (spectrum, intensity, pattern)

+ (0.5+0.05L) dB (S21 test, direct calibration, insertion loss L≤60dB)

-3dB (+1dB, loss, vector SOL calibration, -3dB≥RL≥-25dB)

Absolute orientation (more than 90% interval is better than this value):

18dB (3MHz, 15MHz, 2GHz — 3GHz)

20dB (15MHz-2GHz)

The relative orientation (after vector SOL calibration, the calibrator’s return loss better than 48dB, 90% confidence interval)

45dB (3MHz-2.5GHz)

30dB (1MHz-3MHz, 2.5GHz-3GHz)

20dB (300KHz-1MHz)

Phase relative uncertainty (typically, 3 minutes of preheating, continuous operation mode)

1°(3MHz – 1GHz)

5°(1GHz – 2.5GHz, 1MHz – 3MHz)

7°(2.5GHz – 3GHz, 300KHz – 1MHz)

Except  20,45,50,100,750,1500MHz ±15kHz

Z and R range: 0-999 ohms

X: ±0-999 ohm

1000-9999 ohm value for reference only

Uncertainty (25-200 ohm range): + (2.5%+5) ohm

Frequency stability:

+ 1ppm/year@25 C

Barometer

Pressure range 300-1100hPa

Pressure uncertainty 3hPa (0~45°C)

The altitude range -100 – 9000m

Measuring speed

2ms/, scanning a screen about 1 second (slow, 450pt)

The instrument can be set more speed, but the error increases. The user can according to the demand for speed and accuracy demand of weigh options.

Power voltage:

11.5V…… 32V (external power supply); 6.5…… 8.4V (battery)

105V…… 230V, 50/60Hz (DC adapter input)

Battery life (filled with batteries, typical values, @15°C):

7 hours (intensity, spectrum, signal source);

5 hours (S21 or S11, including the insertion loss testing)

20 hours (STOP state, the brightness of the display screen 10%)

Temperature and humidity range allows work:

-20-65°C (external power supply, battery power supply in the range depends on temperature of the battery characteristics)

10%-90%R.H., no condensation

Size:

200 * 114 * 46mm (length * width * thickness)

Quality (including battery):

Net weight of host machine: less than 1.2kg

Packing: total quality about 2.0kg
