Bluetooth/USB Data Logger
/

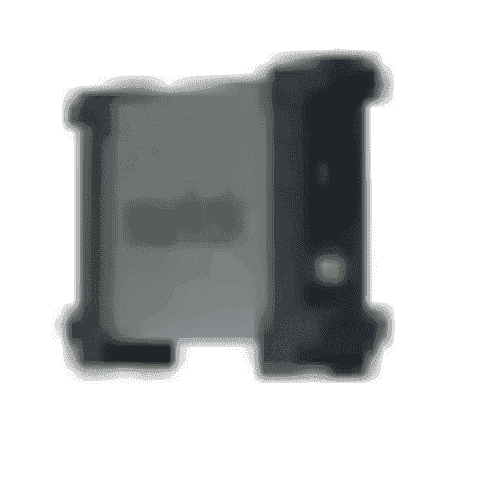

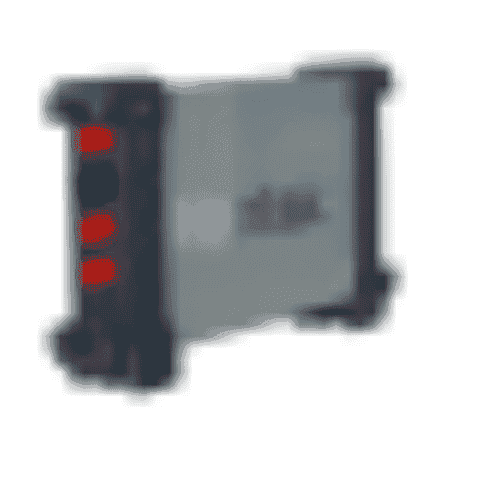

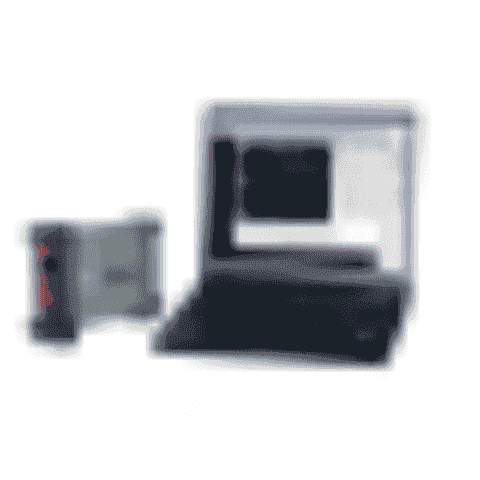

Hantek365D
Hantek365D
Safe electrical isolation; Long time record voltage, current, resistance and capacitance etc. in real time, and create trend curves; True RMS; Plug & play;
Overview
Parameters
Comparison
Accessories
Download
Probe
Video
OneDrive Download
Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves.
Safe electrical isolation, and true RMS measurement.
Plug play USB interface, build-in lithium battery, support bluetooth wireless transmission.
Simple, handy and flexible control software.
Software support: Windows 2000, Windows 7, Windows XP, Win8.
Model No.
Hantek365A
Hantek365B
Hantek365C
Hantek365D
Hantek365E
Hantek365F
True RMS
N
Y
N
Y
N
Y
Lithium-Battery-Powered
N
N
Y
Y
Y
Y
Bluetooth Connection
N
N
Y
Y
Y
Y
iPad Supporting
N
N
N
N
Y
Y
Function
Range
Accuracy
Resolution
DC Voltage
60.00mV
±1% ±1 digit
10uV
600.00mV
100uV
6.00V
1mV
60.00V
10mV
60.00V
100mV
800V
1V
AC Voltage
60.00mV
±1%±3 digit
10uV
600.00mV
100uV
6.00V
1mV
60.00V
10mV
600.0V
100mV
DC Current
60.00mA
±1.5%±1 digit
10uA
600.00mA
±1%±1 digit
100uA
6.000A
±1.5%±3 digit
1mA
10.00A
10mA
AC Current
60.00mA
±1.5%±1 digit
10uA
600.00mA
±1%±1 digit
100uA
6.000A
±1.5%±3 digit
1mA
10.00A
10mA
Resistance
600
±1%±3 digit
0.1Ω
6.000 K
±1%±1 digit
1Ω
60.00 K
10Ω
600.0 K
100Ω
6.000 M
1KΩ
60.00 M
±1.5%±3 digit
10KΩ
Capacitance
40.00nF
±1%±1 digit
10pF
400.00nF
100pF
4.000uF
1nF
40.00uF
10pF
400.0uF
100pF
Attention: The smallest capacitance value that can be measured in 5nF
Diode
0V~2.0V
Hantek365 Software
2013-07-03
Hantek365 Manual
2013-07-03
Hantek365 Driver
2023-08-31
