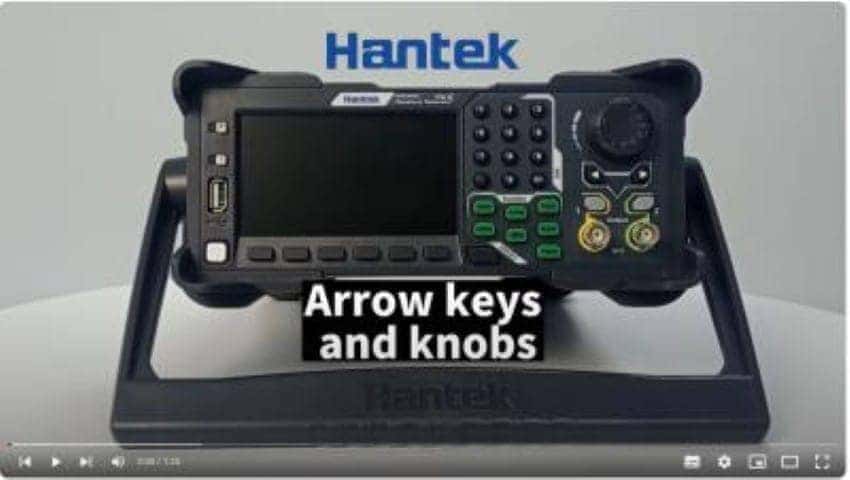

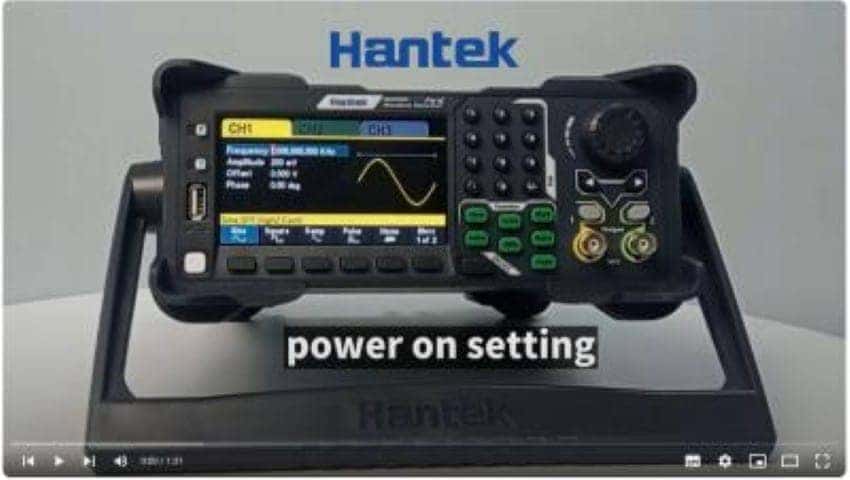

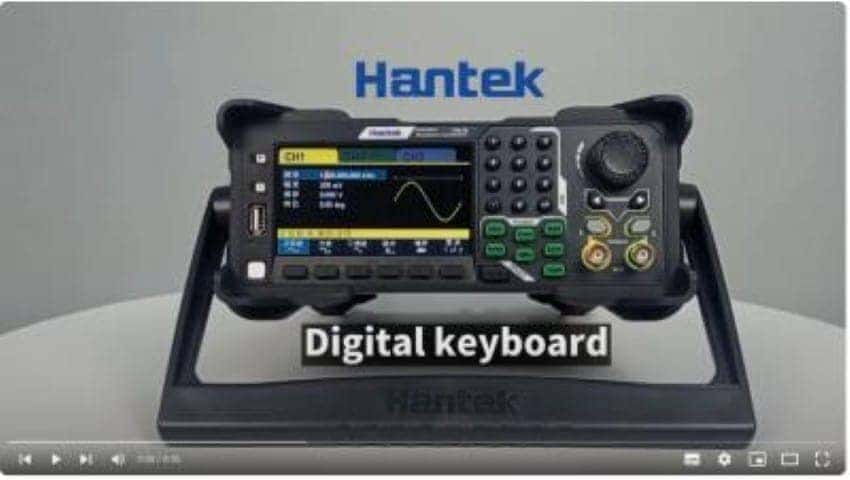

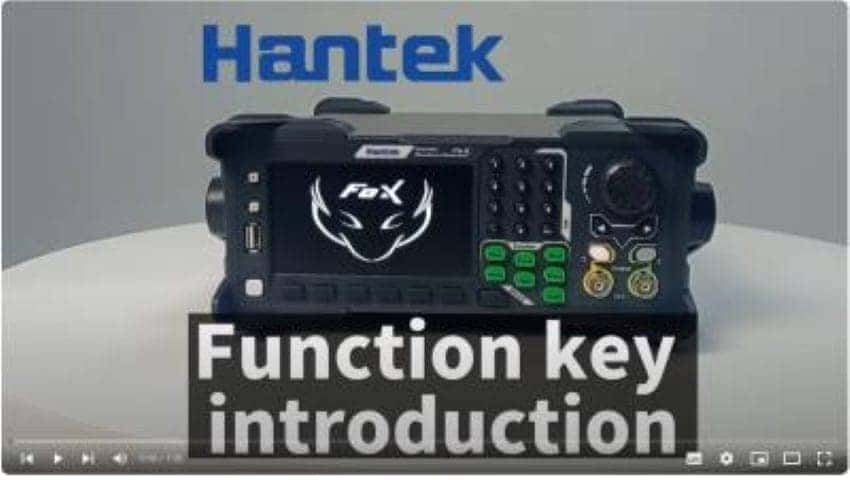

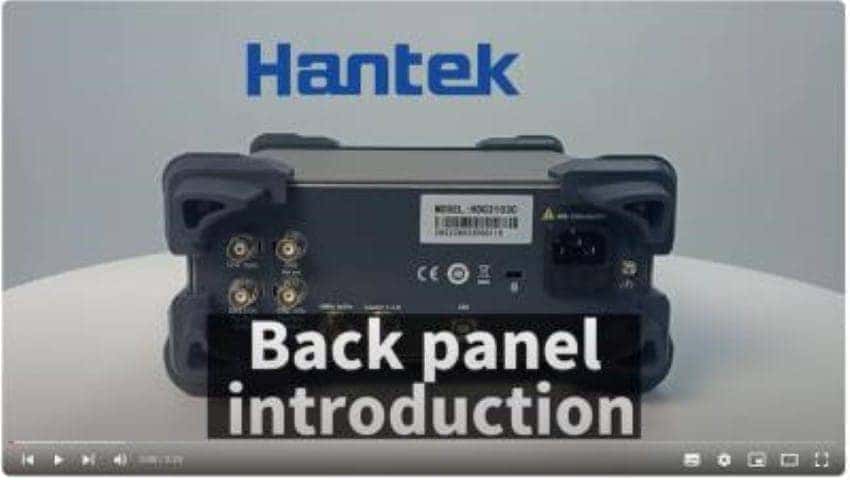

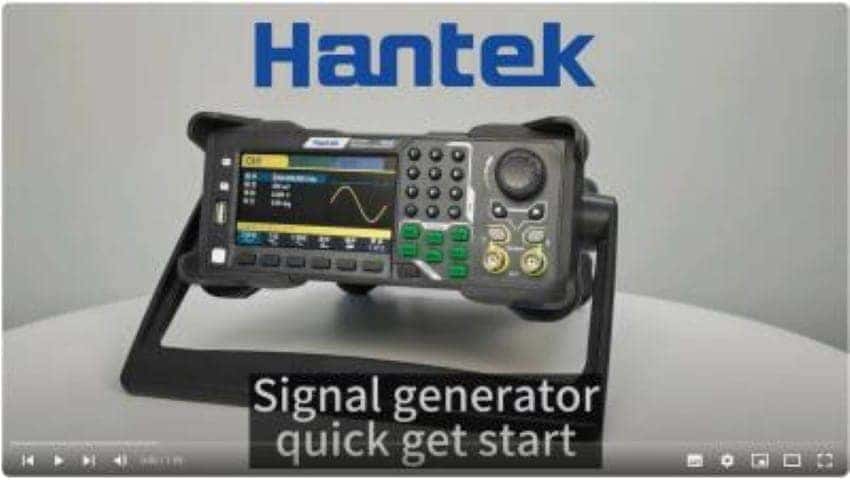

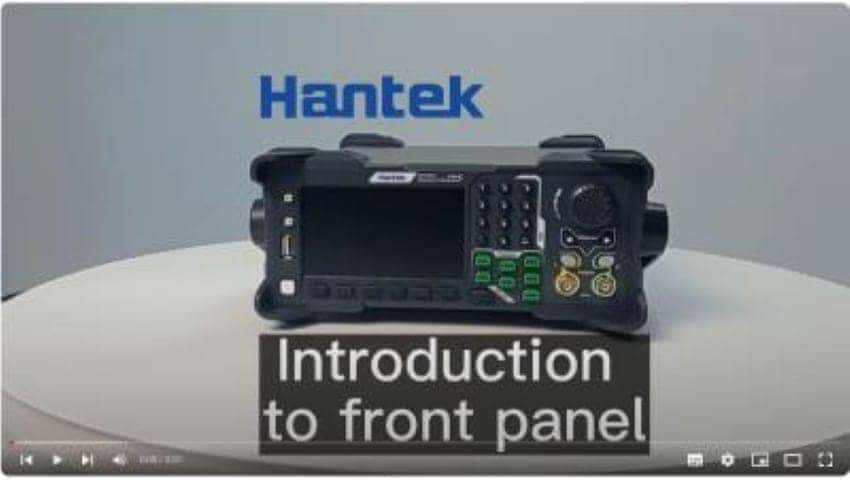

HDG3000C Series

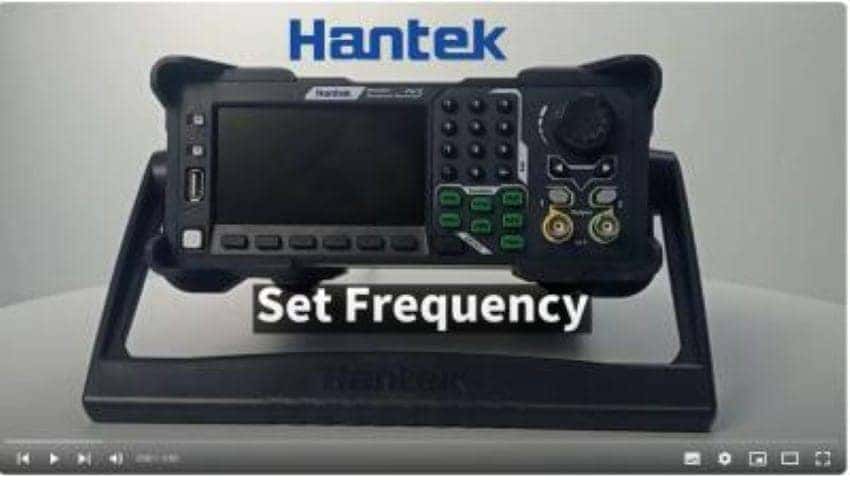

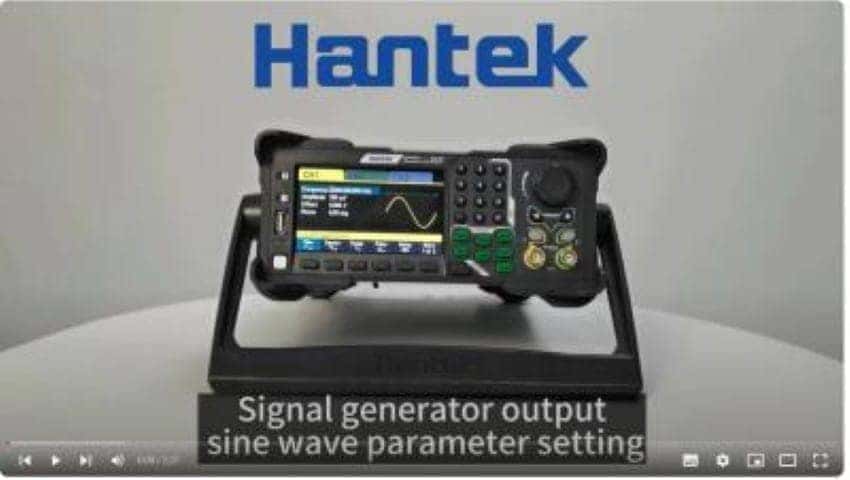

Model | Channels | Max Output Frequency | Max Sampling Rate | Vertical Resolution | Waveform Length | Interface | Mark |
HDG3023C | 3CH | 25MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | Only for CH1/CH2, please refer to the detailed specification of CH3 in the manual |
HDG3043C | 3CH | 40MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3063C | 3CH | 60MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3083C | 3CH | 80MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device | |
HDG3103C | 3CH | 100MHz | 300MSa/s | 16Bits | 2Mpts | USB Host,USB Device |
Model | HDG3103C | HDG3083C | HDG3063C | HDG3043C | HDG3023C |
Channel | 3 | ||||
Wavelength | 2M | ||||
Frequency range | 100MHz | 80MHz | 60MHz | 40MHz | 25MHz |
Sampling rate | 300MSa/s | ||||
Voltage resolution | 16Bits | ||||
Waveform(CH1&CH2) | |||||
Standard waveform output | sine wave, square wave, triangular wave, pulse wave, noise, harmonics | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency property | |||||
Sine wave | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Square wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Pulse wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Triangle wave | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ |
Harmonic | 1 μHz ~ 50 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 30 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 10 MHZ |
Noise (3 db) | 100 MHZ bandwidth | ||||
Arbitrary wave | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Resolution | 1μHz | ||||
Precision | ±1ppm, 18~28℃ | ||||

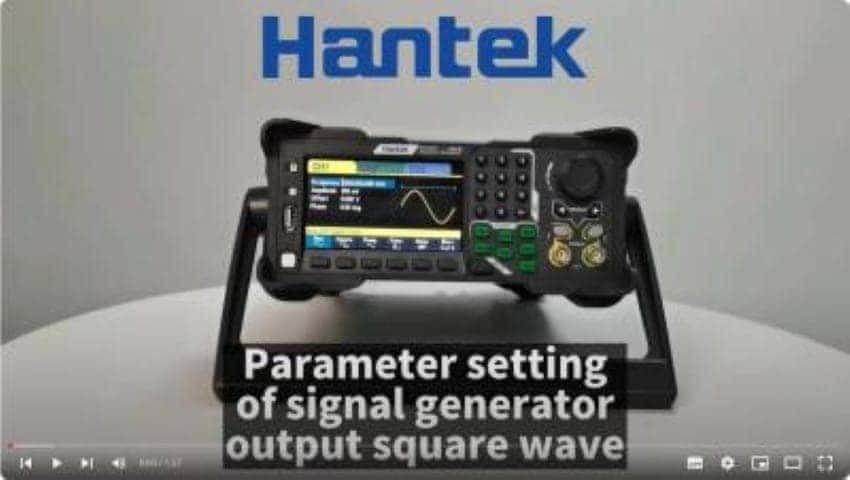

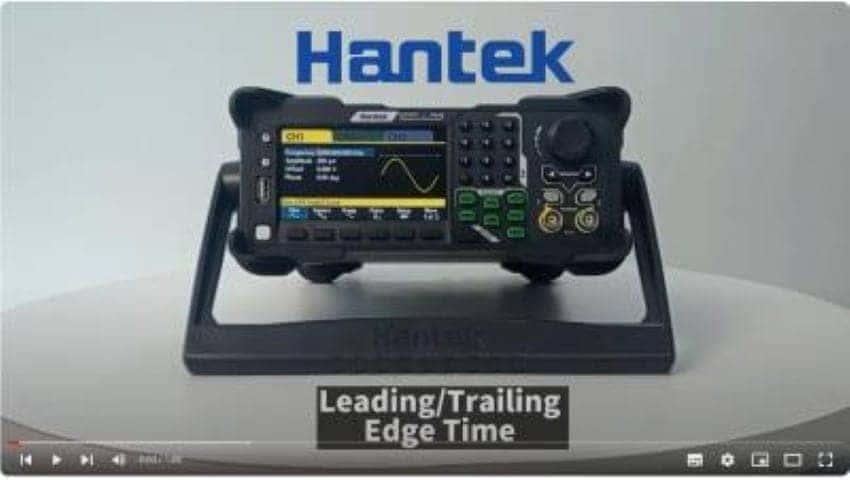

Square wave property | |||||
Rise/Fall time | Typical (1kHz, 1Vpp) | ||||
≤9ns | |||||
Overshoot | Typical (100kHz, 1Vpp) | ||||
≤5% | |||||

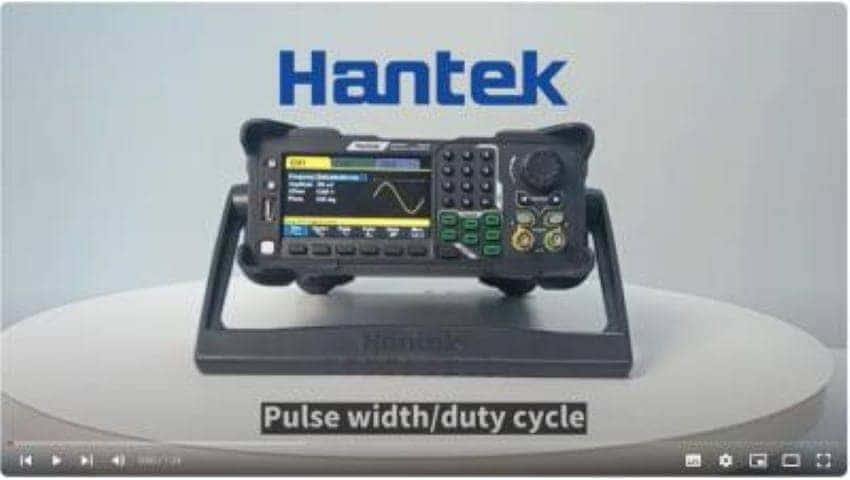

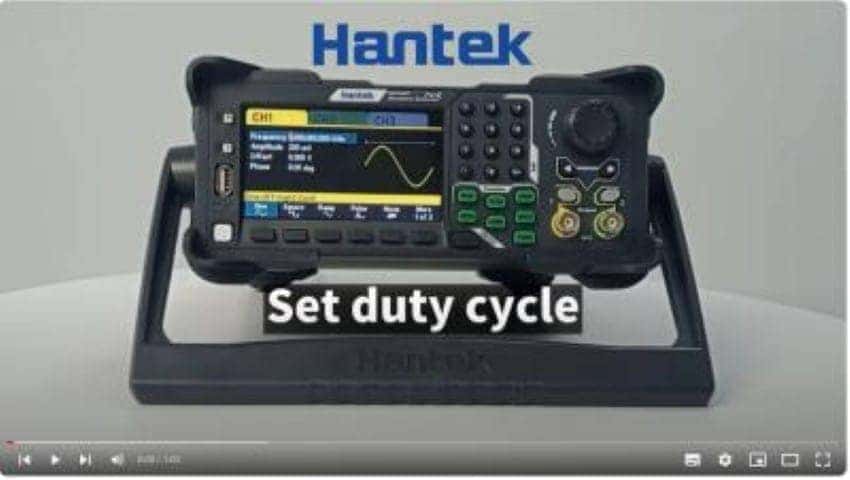

Duty cycle | 0.001% ~ 99.999%; | ||||
The range varies with the frequency | |||||
Asymmetry | 1% of the period plus 4ns | ||||
Triangular wave property | |||||
Linear | ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%) | ||||

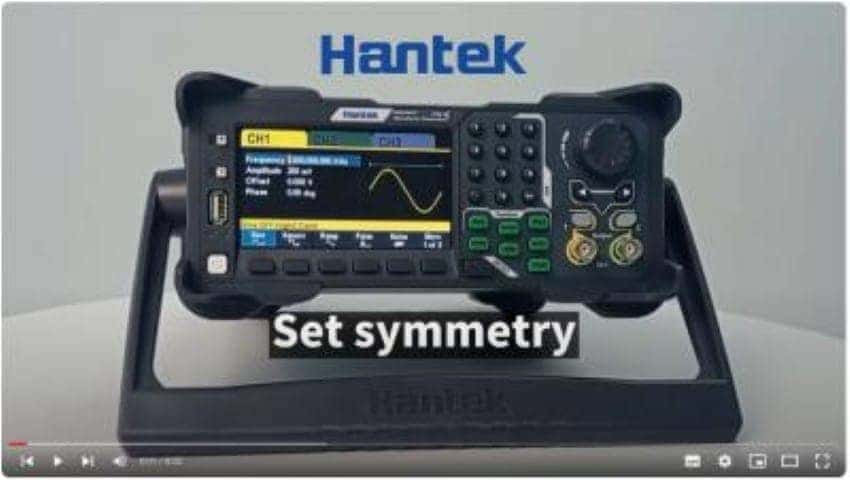

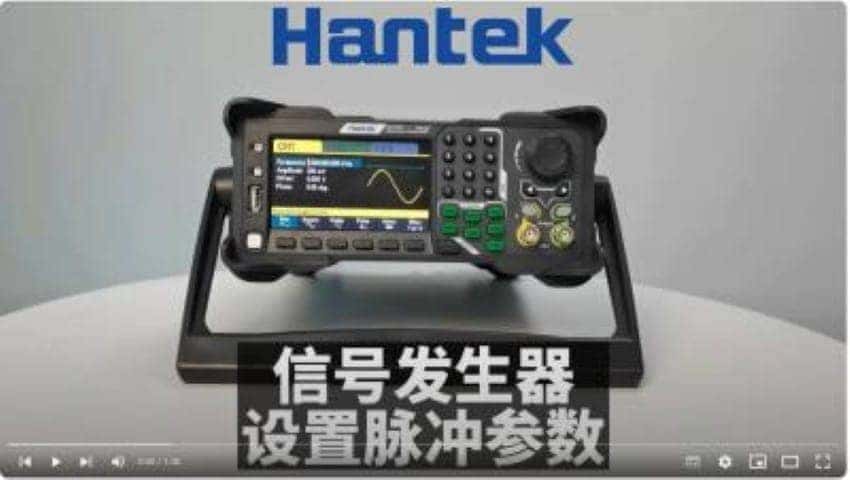

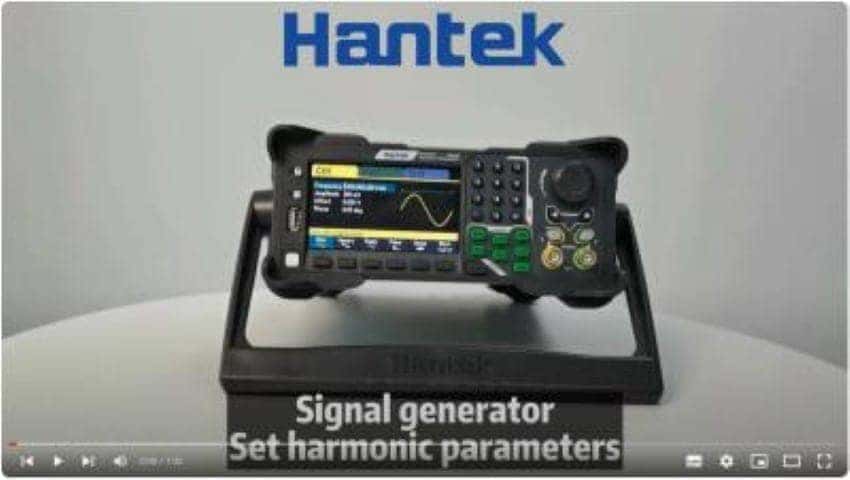

Symmetry | 0% ~ 100% | ||||
Impulse wave property | |||||
Cycle | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms |
Pulse | ≥16ns | ≥16ns | ≥16ns | ≥16ns | ≥16ns |
Rise/Fall time | ≥9ns (limited by current frequency setting and pulse width setting) | ||||
Overshoot | Typical (1kHz, 1Vpp) | ||||
≤5% | |||||
Arbitrary wave property | |||||
Wavelength | 2M | ||||
Vertical resolution | 16 Bits | ||||
Sampling rate | 1μSa/s~62.5 MSa /s, 1μSa/s resolution | ||||
Time of rise/fall | Ns of 9 or higher | ||||
Overshoot | Typical (1Vpp) | ||||
≤5% | |||||
Harmonic property | |||||
Harmonic frequency | ≤16 | ||||

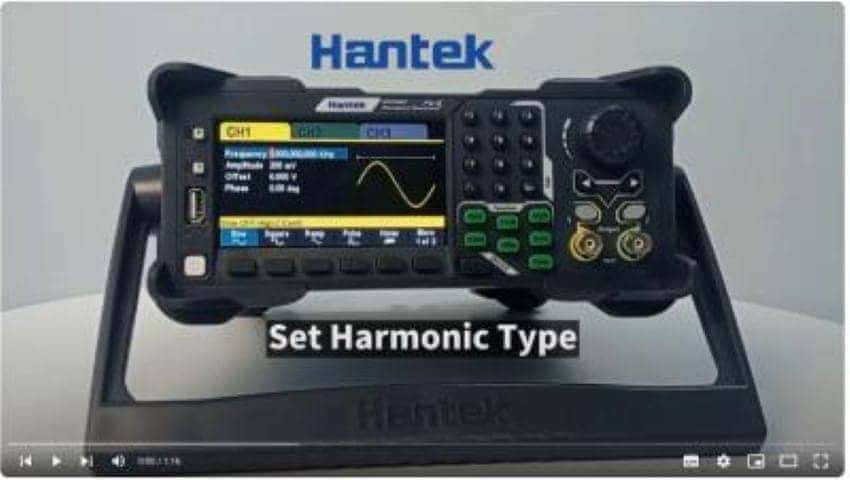

Harmonic type | Even harmonics, odd harmonics, all harmonics | ||||
Harmonic amplitude | All harmonic amplitude can be set. | ||||
Harmonic phase | All harmonic amplitude can be set. | ||||
Amplitude property (50Ω terminal) | |||||
Amplitude range | ≤10MHz: 1mVpp ~ 10Vpp; | ||||
≤40MHz: 1mVpp ~ 5.5Vpp; | |||||
≤60MHz: 1mVpp ~ 4Vpp; | |||||
≤80MHz:1mVpp ~ 2Vpp; | |||||
≤100MHz:1mVpp ~ 1.5Vpp; | |||||
Precision | Typical (1kHz sine wave, 0V offset, > 10mVPP) | ||||
± 1% setting value ± 5mVpp | |||||
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω) | ≤5MHz: ±0.1dB; | ||||
≤15MHz: ±0.2dB; | |||||
≤25MHz: ±0.3dB | |||||
≤40MHz: ±0.5dB | |||||
≤60MHz: ±1.0dB | |||||
Unit | Vpp, mVpp, Vrms, dBm(50Ω impedance) | ||||
Resolution | 1mVpp | ||||

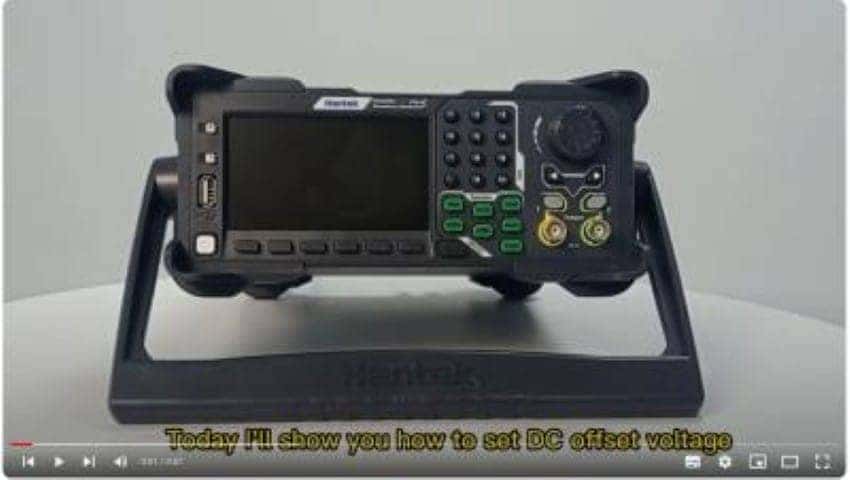

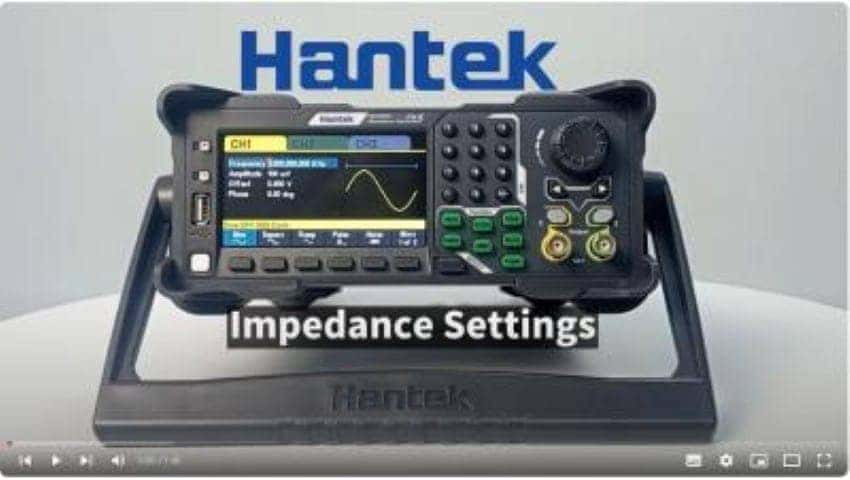

Offset property (50Ω terminal) | |||||
Scope | ±5Vpkac+dc | ||||
Precision | ±(1% of the setting value + 5mV + 1% of the amplitude) | ||||
Waveform output | |||||
Impedance | 50 Ω | ||||
Modulation property | |||||
Modulation type | AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM | ||||

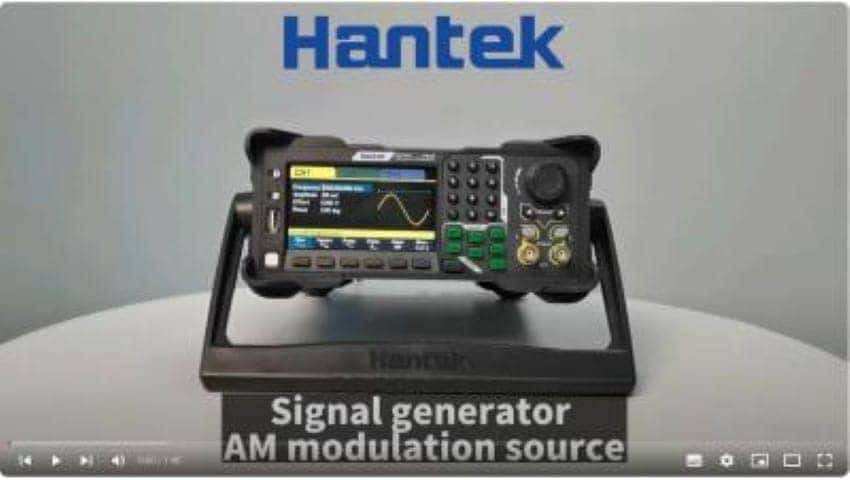

AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||
DSB-AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||

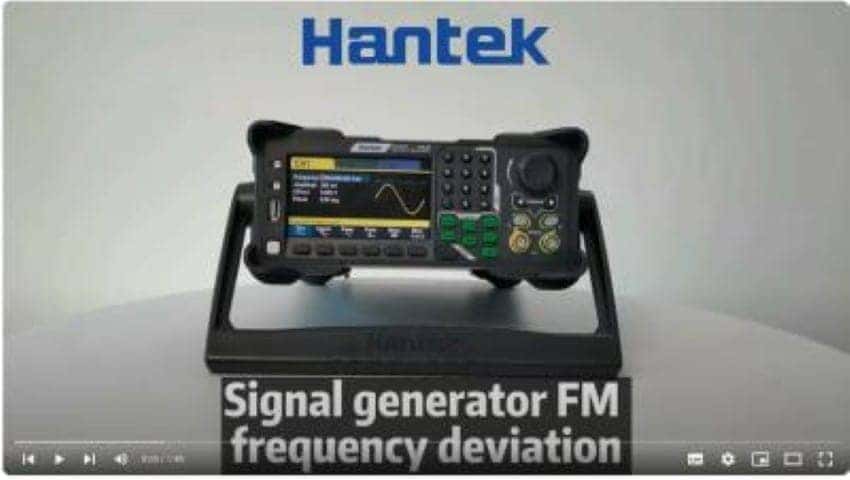

FM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
PM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Phase deviation | 0 ° ~ 360 ° | ||||
ASK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
PSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||

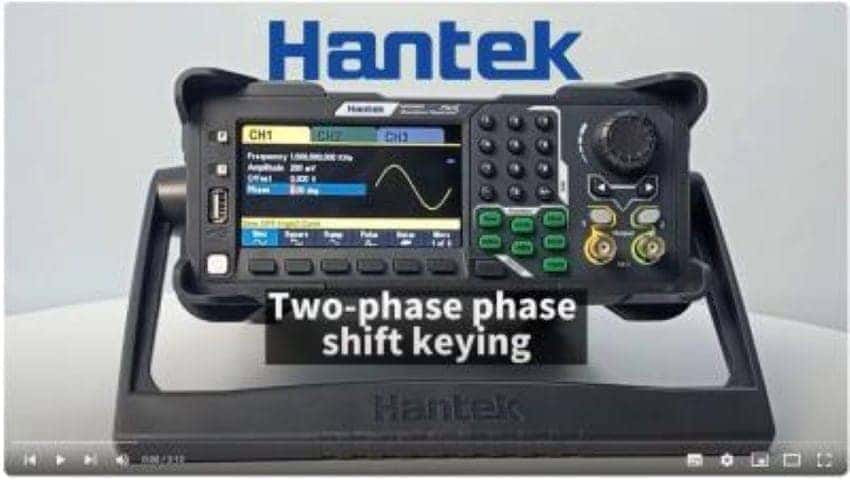

BPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21, 01, 10 | ||||
Modulation frequency | 2mHz~1MHz | ||||

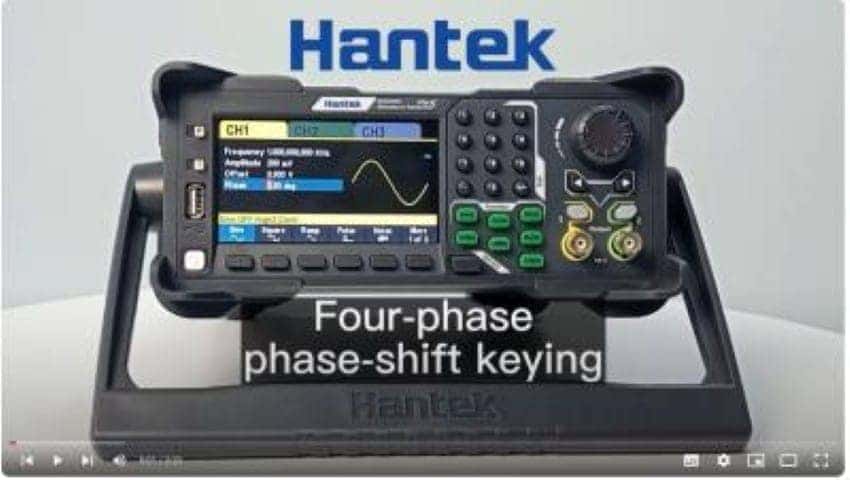

QPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21 | ||||
Modulation frequency | 2mHz~1MHz | ||||
3FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
4FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||

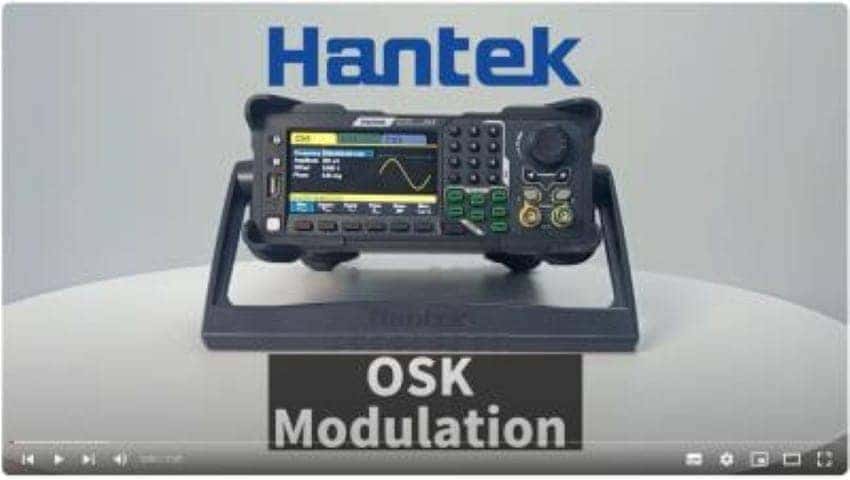

OSK | |||||
Carrier | Sine wave | ||||
Modulation source | Internal, external | ||||
Shock time | 8 ns - 4.99975 ms | ||||
Modulation frequency | 2mHz~1MHz | ||||
PWM | |||||
Carrier | Square wave | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~50KHz | ||||
Duty cycle deviation | 0% ~ 50% | ||||
External modulation input | |||||
Input range | AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc | ||||
ASK, FSK, PSK: TTL level | |||||
Input bandwidth | 50KHz | ||||
Input impedance | 10 KΩ | ||||

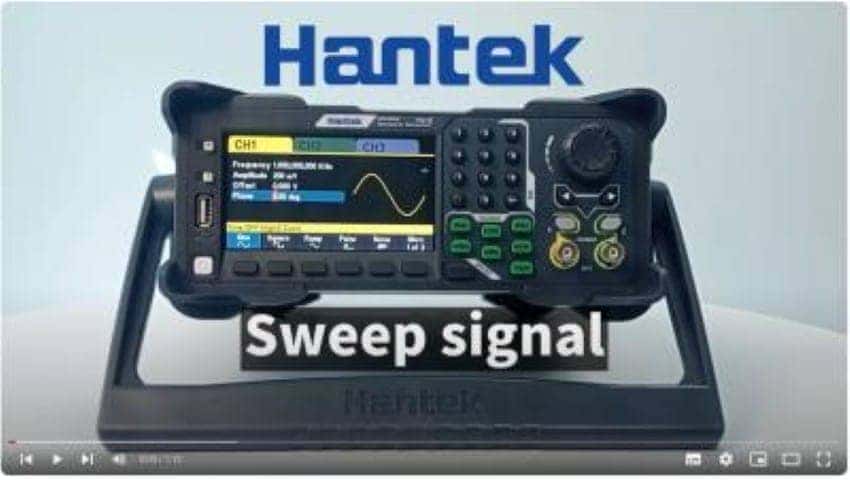

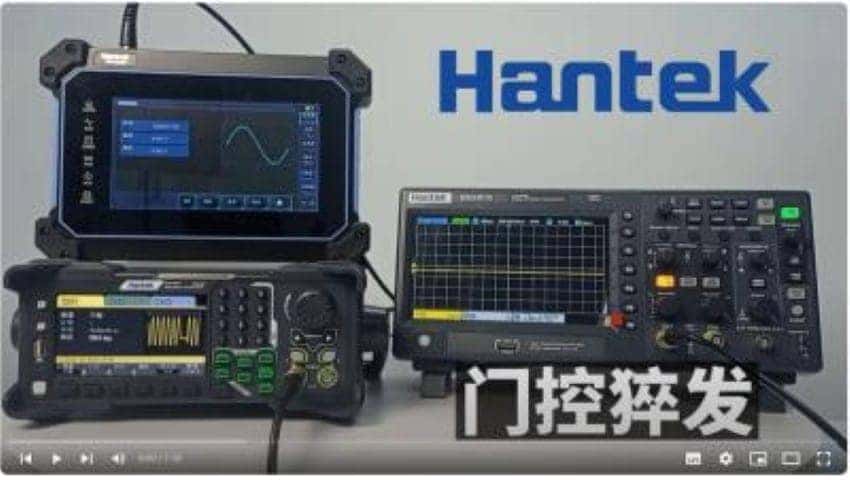

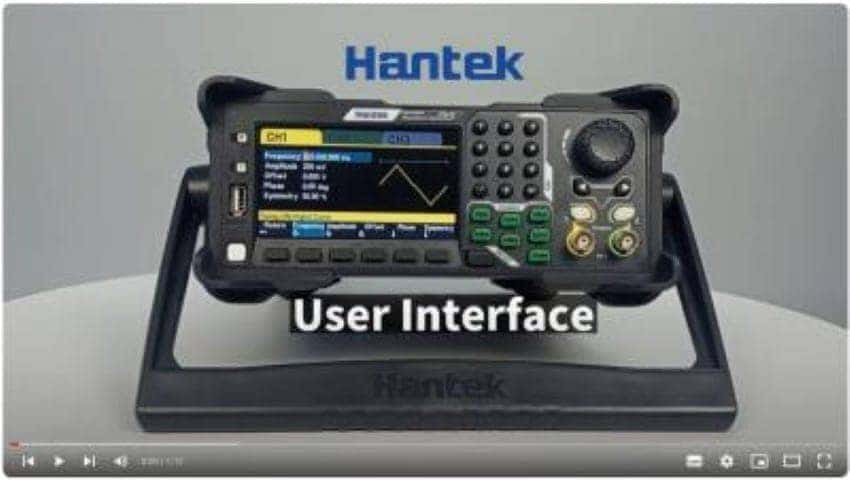

Sweep frequency property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Type | Linear | ||||
Direction | Upward | ||||
Frequency sweep time | 1ms ~ 50Ks | ||||
Hold/return time | 0ms ~ 50Ks | ||||
Trigger source | Internal, external, manual | ||||
Tag | Synchronize the model's falling edge | ||||
Burst property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Carrier frequency | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Burst counting | 1 ~ 2000 000 000 | ||||
Start/stop phase | 0 ° ~ 360 ° | ||||
Internal cycle | 2 μs ~ 500 s | ||||
Door control source | External trigger | ||||
Trigger source | Internal, external, manual | ||||
Frequency meter | |||||
Measurement functions | Frequency, period, positive/negative pulse width, duty cycle | ||||
Frequency | 1 μHz ~ 80 MHZ | ||||
Gate time | 10ms~16s | ||||
Input signal range | 0 ~ 3.3 V | ||||
Trigger property | |||||
Trigger input | |||||
Level | TTL - compatible | ||||
Slope | Up or down (optional) | ||||
Pulse width | >100ns | ||||
Trigger output | |||||
Level | TTL - compatible | ||||
The pulse width | >60ns | ||||
Maximum frequency | 1MHz | ||||
Reference clock | |||||
External reference input | |||||
Lock range | 10 MHz ± 50 Hz | ||||
Level | Low level: 0~400mV, high level: 2.5V~5V | ||||
Locking time | < 2 s | ||||
Input impedance | 50 Ω, DC coupling | ||||
Internal reference output | |||||
Frequency | 10 MHz + 50 Hz | ||||
Level | 3.3 Vpp | ||||
Output impedance (typical value) | 50 Ω, DC coupling | ||||
Synchronous output | |||||
Level | TTL - compatible | ||||
Impedance | 50Ω, nominal value | ||||
Waveform(CH3) | |||||
Standard waveform output | sine wave, square wave, triangular wave,noise, harmonics,DC | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency | sine wave:1uHz ~ 20MHz | ||||
square wave:1uHz ~ 5MHz | |||||
triangular wave:1 uHz ~ 1 MHz | |||||
harmonics:1uHz ~ 5MHz | |||||
Arbitrary waveform:1uHz ~ 15MHz | |||||
Precision | ±1ppm, 18~28℃ | ||||
Sampling rate | 150MSa/s | ||||
Wavelength | 8K | ||||
Voltage resolution | 12bit | ||||
Amplitude range | 2 mVpp ~ 7 Vpp(High resistance) | ||||
Output impedance | 50Ω | ||||
General features | |||||
Interface | USB Host, USB Device | ||||
Display | 4.3-inch color TFT LCD screen | ||||
Voltage | 100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ | |||||
Power | <30W | ||||
Fuse | T, 0.5 A, 250 v, 5 x20mm | ||||
Environment | |||||
Temperature range | Operation: 10℃ ~ 40℃ | ||||
Non-operation: -20℃ ~ 60℃ | |||||
Humidity range | ≤+104℉(≤+40°C): Relative humidity ≤90% | ||||
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60% | |||||
Altitude | Operation: below 3000 meters | ||||
Non-operation: below 15000 meters | |||||
Mechanical specifications | |||||
Dimensions (W × H × D) | 308mm x 232mm x 110mm | ||||
Weight | 3.09KG |
Model | HDG3103C | HDG3083C | HDG3063C | HDG3043C | HDG3023C |
Channel | 3 | ||||
Wavelength | 2M | ||||
Frequency range | 100MHz | 80MHz | 60MHz | 40MHz | 25MHz |
Sampling rate | 300MSa/s | ||||
Voltage resolution | 16Bits | ||||
Waveform(CH1&CH2) | |||||
Standard waveform output | sine wave, square wave, triangular wave, pulse wave, noise, harmonics | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency property | |||||
Sine wave | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Square wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Pulse wave | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Triangle wave | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ | 1 μHz ~ 2 MHZ |
Harmonic | 1 μHz ~ 50 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 30 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 10 MHZ |
Noise (3 db) | 100 MHZ bandwidth | ||||
Arbitrary wave | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 20 MHZ | 1 μHz ~ 15 MHZ | 1 μHz ~ 15 MHZ |
Resolution | 1μHz | ||||
Precision | ±1ppm, 18~28℃ | ||||
Square wave property | |||||
Rise/Fall time | Typical (1kHz, 1Vpp) | ||||
≤9ns | |||||
Overshoot | Typical (100kHz, 1Vpp) | ||||
≤5% | |||||
Duty cycle | 0.001% ~ 99.999%; | ||||
The range varies with the frequency | |||||
Asymmetry | 1% of the period plus 4ns | ||||
Triangular wave property | |||||
Linear | ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%) | ||||
Symmetry | 0% ~ 100% | ||||
Impulse wave property | |||||
Cycle | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms | 67ns~1Ms |
Pulse | ≥16ns | ≥16ns | ≥16ns | ≥16ns | ≥16ns |
Rise/Fall time | ≥9ns (limited by current frequency setting and pulse width setting) | ||||
Overshoot | Typical (1kHz, 1Vpp) | ||||
≤5% | |||||
Arbitrary wave property | |||||
Wavelength | 2M | ||||
Vertical resolution | 16 Bits | ||||
Sampling rate | 1μSa/s~62.5 MSa /s, 1μSa/s resolution | ||||
Time of rise/fall | Ns of 9 or higher | ||||
Overshoot | Typical (1Vpp) | ||||
≤5% | |||||

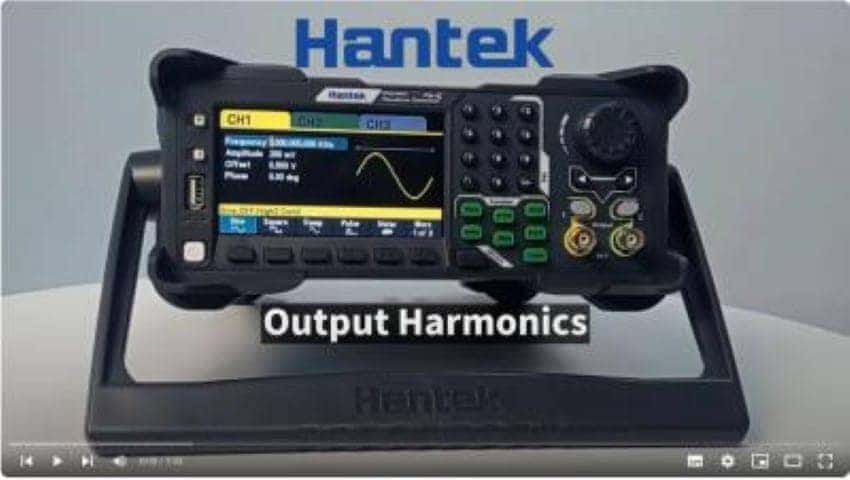

Harmonic property | |||||
Harmonic frequency | ≤16 | ||||
Harmonic type | Even harmonics, odd harmonics, all harmonics | ||||
Harmonic amplitude | All harmonic amplitude can be set. | ||||
Harmonic phase | All harmonic amplitude can be set. | ||||

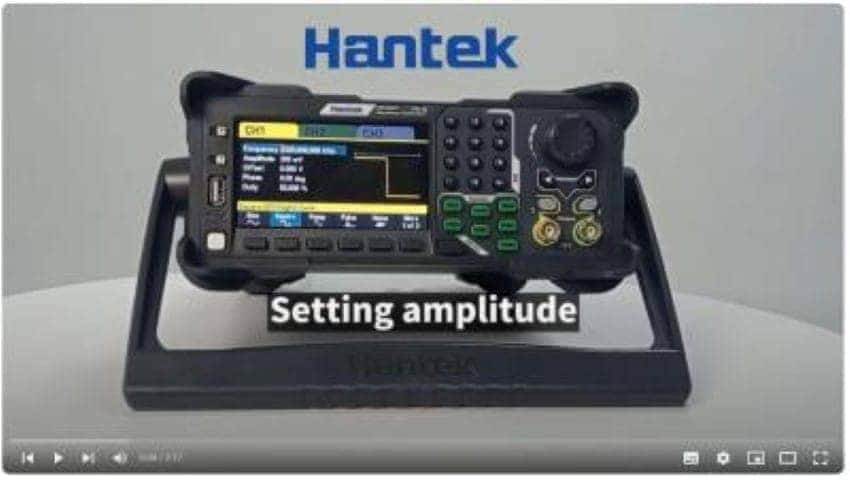

Amplitude property (50Ω terminal) | |||||
Amplitude range | ≤10MHz: 1mVpp ~ 10Vpp; | ||||
≤40MHz: 1mVpp ~ 5.5Vpp; | |||||
≤60MHz: 1mVpp ~ 4Vpp; | |||||
≤80MHz:1mVpp ~ 2Vpp; | |||||
≤100MHz:1mVpp ~ 1.5Vpp; | |||||
Precision | Typical (1kHz sine wave, 0V offset, > 10mVPP) | ||||
± 1% setting value ± 5mVpp | |||||
Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω) | ≤5MHz: ±0.1dB; | ||||
≤15MHz: ±0.2dB; | |||||
≤25MHz: ±0.3dB | |||||
≤40MHz: ±0.5dB | |||||
≤60MHz: ±1.0dB | |||||
Unit | Vpp, mVpp, Vrms, dBm(50Ω impedance) | ||||
Resolution | 1mVpp | ||||
Offset property (50Ω terminal) | |||||
Scope | ±5Vpkac+dc | ||||
Precision | ±(1% of the setting value + 5mV + 1% of the amplitude) | ||||
Waveform output | |||||
Impedance | 50 Ω | ||||
Modulation property | |||||
Modulation type | AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM | ||||

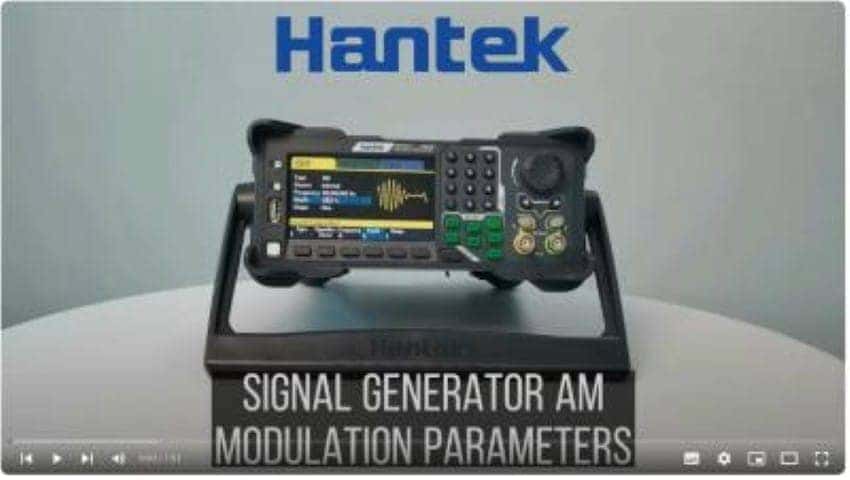

AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||
DSB-AM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Modulation depth | 0% ~ 120% | ||||
FM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
PM | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~1MHz | ||||
Phase deviation | 0 ° ~ 360 ° | ||||
ASK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
PSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | Internal and external | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
BPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21, 01, 10 | ||||
Modulation frequency | 2mHz~1MHz | ||||
QPSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Data source | PN15, PN21 | ||||
Modulation frequency | 2mHz~1MHz | ||||
3FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||

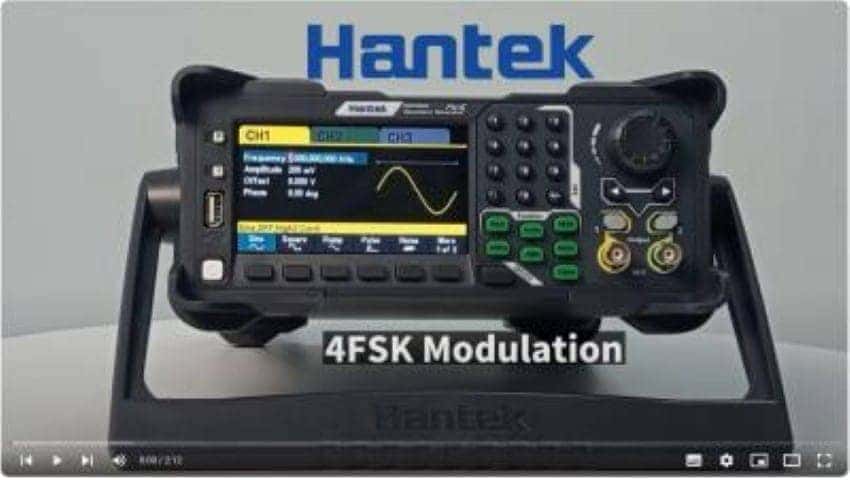

4FSK | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Modulation source | internal | ||||
Modulation wave | 50% duty cycle square wave | ||||
Modulation frequency | 2mHz~1MHz | ||||
OSK | |||||
Carrier | Sine wave | ||||
Modulation source | Internal, external | ||||
Shock time | 8 ns - 4.99975 ms | ||||
Modulation frequency | 2mHz~1MHz | ||||

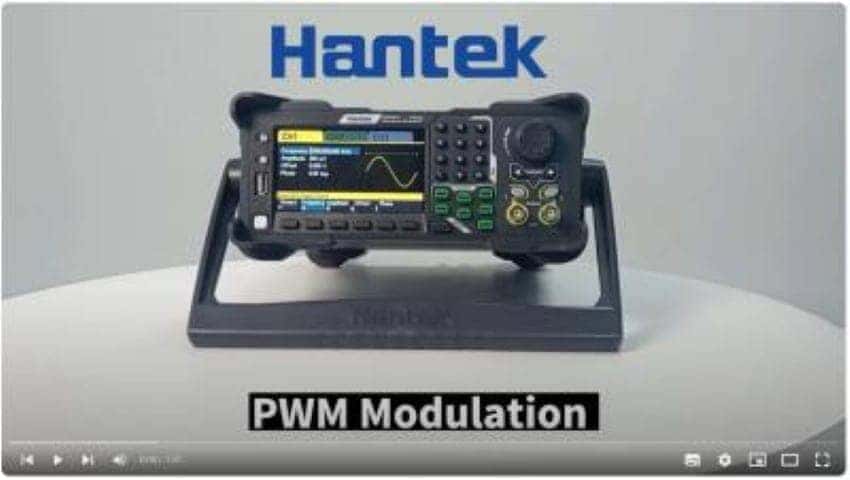

PWM | |||||
Carrier | Square wave | ||||
Modulation source | Internal, external and other channels | ||||
Modulation wave | Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg | ||||
Modulation frequency | 2mHz~50KHz | ||||
Duty cycle deviation | 0% ~ 50% | ||||
External modulation input | |||||
Input range | AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac + dc | ||||
ASK, FSK, PSK: TTL level | |||||
Input bandwidth | 50KHz | ||||
Input impedance | 10 KΩ | ||||
Sweep frequency property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Type | Linear | ||||
Direction | Upward | ||||
Frequency sweep time | 1ms ~ 50Ks | ||||
Hold/return time | 0ms ~ 50Ks | ||||
Trigger source | Internal, external, manual | ||||
Tag | Synchronize the model's falling edge | ||||
Burst property | |||||
Carrier | Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC) | ||||
Carrier frequency | 1 μHz ~ 100 MHZ | 1 μHz ~ 80 MHZ | 1 μHz ~ 60 MHZ | 1 μHz ~ 40 MHZ | 1 μHz ~ 25 MHZ |
Burst counting | 1 ~ 2000 000 000 | ||||

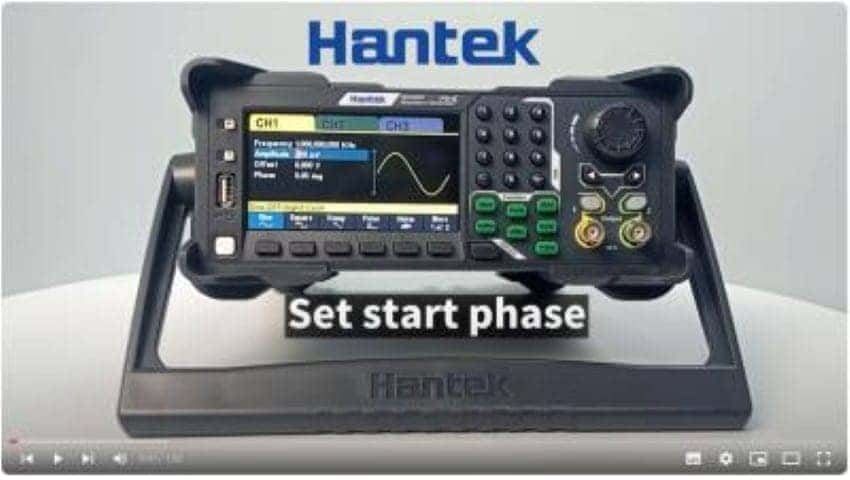

Start/stop phase | 0 ° ~ 360 ° | ||||
Internal cycle | 2 μs ~ 500 s | ||||
Door control source | External trigger | ||||
Trigger source | Internal, external, manual | ||||

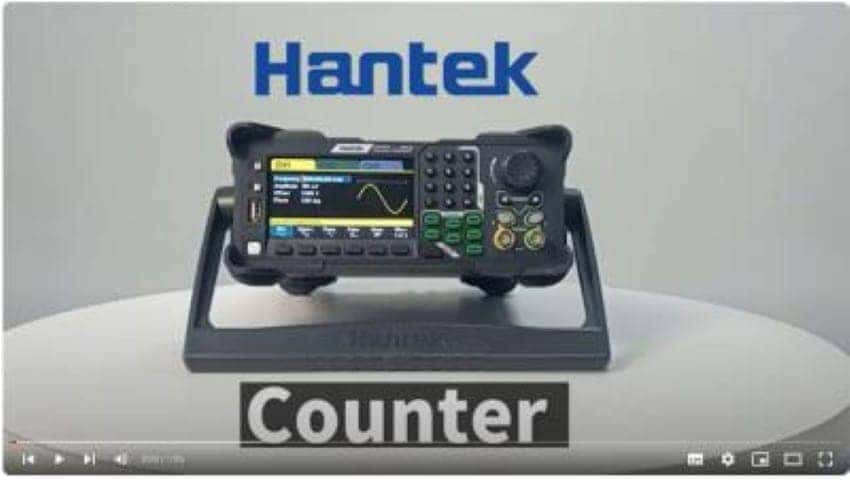

Frequency meter | |||||
Measurement functions | Frequency, period, positive/negative pulse width, duty cycle | ||||
Frequency | 1 μHz ~ 80 MHZ | ||||
Gate time | 10ms~16s | ||||
Input signal range | 0 ~ 3.3 V | ||||
Trigger property | |||||
Trigger input | |||||
Level | TTL - compatible | ||||
Slope | Up or down (optional) | ||||
Pulse width | >100ns | ||||
Trigger output | |||||
Level | TTL - compatible | ||||
The pulse width | >60ns | ||||
Maximum frequency | 1MHz | ||||
Reference clock | |||||
External reference input | |||||
Lock range | 10 MHz ± 50 Hz | ||||
Level | Low level: 0~400mV, high level: 2.5V~5V | ||||
Locking time | < 2 s | ||||
Input impedance | 50 Ω, DC coupling | ||||
Internal reference output | |||||
Frequency | 10 MHz + 50 Hz | ||||
Level | 3.3 Vpp | ||||
Output impedance (typical value) | 50 Ω, DC coupling | ||||
Synchronous output | |||||
Level | TTL - compatible | ||||
Impedance | 50Ω, nominal value | ||||
Waveform(CH3) | |||||
Standard waveform output | sine wave, square wave, triangular wave,noise, harmonics,DC | ||||
Arbitrary waveform output | 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc | ||||
Frequency | sine wave:1uHz ~ 20MHz | ||||
square wave:1uHz ~ 5MHz | |||||
triangular wave:1 uHz ~ 1 MHz | |||||
harmonics:1uHz ~ 5MHz | |||||
Arbitrary waveform:1uHz ~ 15MHz | |||||
Precision | ±1ppm, 18~28℃ | ||||
Sampling rate | 150MSa/s | ||||
Wavelength | 8K | ||||
Voltage resolution | 12bit | ||||
Amplitude range | 2 mVpp ~ 7 Vpp(High resistance) | ||||
Output impedance | 50Ω | ||||
General features | |||||
Interface | USB Host, USB Device | ||||
Display | 4.3-inch color TFT LCD screen | ||||
Voltage | 100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ | ||||
120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ | |||||
Power | <30W | ||||
Fuse | T, 0.5 A, 250 v, 5 x20mm | ||||
Environment | |||||
Temperature range | Operation: 10℃ ~ 40℃ | ||||
Non-operation: -20℃ ~ 60℃ | |||||
Humidity range | ≤+104℉(≤+40°C): Relative humidity ≤90% | ||||
106℉~122℉ (+41°C ~50°C): Relative humidity ≤60% | |||||
Altitude | Operation: below 3000 meters | ||||
Non-operation: below 15000 meters | |||||
Mechanical specifications | |||||
Dimensions (W × H × D) | 308mm x 232mm x 110mm | ||||
Weight | 3.09KG |
