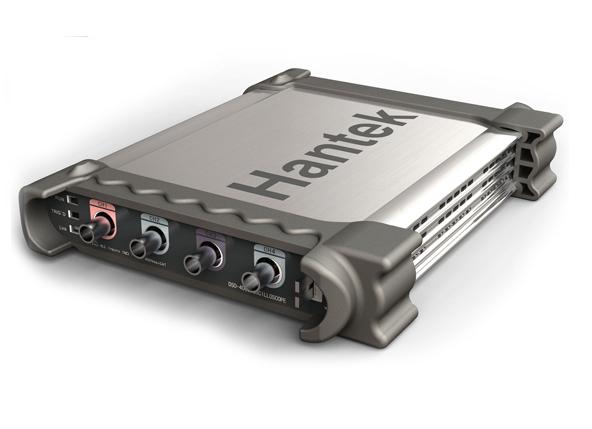

DSO3000 Series (1GSa/s)

60/100/250MHz bandwidth; 256M memory depth;
Max.measurable signal up to 400MHz;
8-bit resolution, similar interface as benchtop;
Support Windows 7, Windows 8, XP, VISTA,simple to operate.

OneDrive Download
  • 256M memory depth;
  • 2/4 channel and EXT trigger;
  • 60-250MHz bandwidth;
  • 1GSa/s real-time sampling rate;
  • 8--36V Wide range of input voltage,suitable for vehicle power test;
  • More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application;
  •  Excellent industrial design, similar interface with bench oscilloscope, easy to use;
  • Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win7, Win8;
  • Supply DEMO code(VC, VB, LABIEW) and technical support.

Function Picture


Model DSO3102 DSO3102A DSO3202 DSO3202A DSO3104 DSO3104A DSO3204 DSO3204A
Analog Channels 2 4
Bandwidth 60MHz 100MHz 200MHz 250MHz 100MHz 150MHz 200MHz 250MHz
Rise Time 5.8ns 3.5ns 1.7ns 1.4ns 3.5ns 2.3ns 1.7ns 1.4ns
Input Impedance Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity 10mV/div to 5V/div
Input Coupling AC/DC/GND
Vertical Resolution 8 bits
Memory Depth 10K-256M/CH
Maximum Input 400V (DC+AC Peak)
Real-Time Sampling Rate 1GSa/s
Time Base Range 5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision ±50ppm
Source CH1, CH2, EXT CH1, CH2,CH3, CH4, EXT
Mode Edge, Pulse,Video, Alternative
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
Voltage Range 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe;  200mV to 100V/div @ 20:1
Current Range CC65(20A),CC65(60A),CC650,CC1100
FFT Rectangular,Hanning,Hamming,Blackman Window
Math Adition,subtraction,multiplication,division
POWER SOURCE 8--36V Wide range of input voltage,suitable
Volume 255 x 190 x 45 (mm)
Weight 1Kg
