DSO5000BMV Series

Built-in Video Help,Built-in 4GB flash memory card; Bandwidth:60-200MHz,1GSa/s Real Time sample rate;
Large (7.0-inch) color display,WVGA(800x480);
Record length up to 2M;
With video help function, built-in 2GB flash memory card.

  • 200/100/60MHz bandwidth
  • 1GSa/s Real Time sample rate
  • Large (7.0-inch) color display, WVGA(800x480)
  • Record length up to 2M
  • Trigger Type: edge/pulse width/line selectable video/slop/overtime etc.
  • USB host and device connectivity, standard
  • Multiple automatic measurements
  • Four math functions, including FFTs standard
  • Provides software for PC real-time analysis
  • With video help function, built-in 2GB flash memory card.
  • VGA Optional

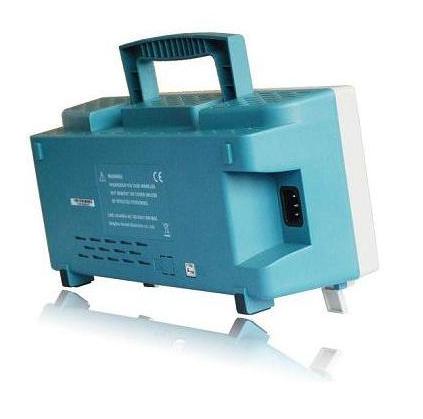

Function Picture:

This device is running Linux 2.6, for more detail see

Model DSO5202BMV DSO5102BMV DSO5062BMV
Bandwidth 200MHz 100MHz 60MHz
Channel 2
Real-Time Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Memory Depth 2M
Rise Time 1.7ns/3.5ns/5.8ns
Time Base Accuracy ±50ppm
Time Base Range 2ns/div-40s/div
Video Help Yes
SD Card Yes
Input Impendance  1MΩ
VOLTS/DIV Range 2mV/div~5V/div
A/D Converter 8 bit
Position Range ±50V(5V/div), ±40V(2V/div500mV/div),
50mV/div), ±400mV(20mV/div2mV/div)
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2, EXT, EXT/5, AC Line
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors:
Reciprocal of
T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
Display 7" TFT 16K Color LCD, 800*480 dots
Size 313mm x 108mm x 142mm
Weight 2.08KG
Standard Probe PP200x2 PP150X2  PP80X2
Detailed technical index please refer to "DSO5000B Series Datasheet"
